If you are providing higher risk services such as tattooing and body piercing, your premises design needs to support hygienic procedures and meet the requirements of the:

• Queensland Development Code, Part MP 5.2 – Higher risk personal appearance services
• Public Health (Infection Control for Personal Appearance Services) Act 2003.

Your business should be designed and constructed to:

• be adequate for the types of services and activities conducted
• provide adequate space for all activities conducted and for all equipment to be used or stored
• allow easy cleaning/sanitising and sterilising procedures of all structures and equipment.

You can find detailed design and fit-out requirements for the fit-out of higher risk businesses on this page, or you can download the personal appearance services fit out guide.

Flow of activities

Your premises must be designed so that the flow of service is in one direction: from product receipt, to storage, preparation, providing the customer with a service, and finally to disposal and/or sanitising and/or sterilising of equipment, and in doing so reduce the infection risks associated with the process.

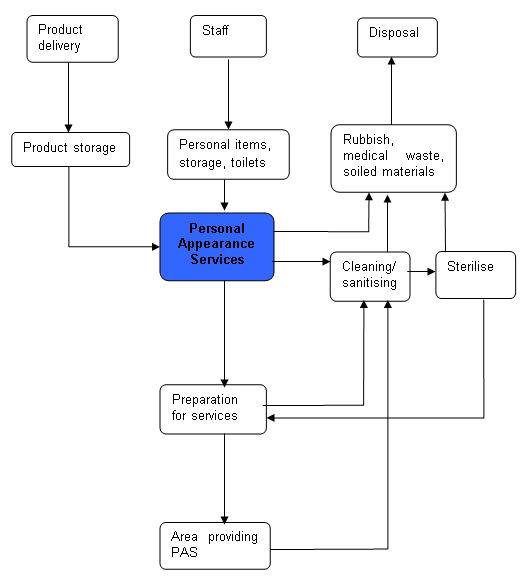

Figure 1: Example of flow of staff and services through a premises providing PAS

Your business must include:

• a clean zone within a room, or rooms, where clean or sterilised items are stored and a hand basin is located
• a dirty or contaminated zone within a room, or rooms, where contaminated items are placed to await cleaning, and where the cleaning sinks, instrument washers and sterilisers are located.

Storage space

Proper planning of your premises will effectively designate adequate space and areas for procedures and storage of equipment and products. Storage areas must be constructed of materials which are durable and easily cleaned in line with requirements of the 'finishing materials' performance criteria in the Queensland Development Code - Mandatory Part - MP 5.2 – Higher Risk Personal Appearance Services.

Adequate space must be provided for:

• product and equipment delivery access
• new product - sufficient shelving space, sanitised and/or sterile area
• 'in use' product - sufficient clean and practical space
• adequate preparation area
• cleaning chemicals and equipment - separate cabinet, locker or cupboards for all chemicals and cleaning supplies
• waste - sufficient and separate waste containers for all anticipated waste, including general waste, soiled waste, medical waste, etc
• personal belongings - separate lockers, cupboards or cabinets for personal clothing and items
• utensils/equipment - adequate storage space
• office and business equipment (used to run the business) must be separate from storage and preparation areas to minimise infection risks.

Clean towels, linen and other materials that may be required to carry out processes hygienically must be stored in adequate vermin-proof cupboards, cabinets or other similar fittings.

Hand basins

Your business must be provided with hand washing facilities which consist of at least one hand washing basin for each five workstations or part thereof with:

• bowl dimensions of not less than 400mm x 250mm
• reticulated cold water controlled by non-touch taps and includes wrist, elbow, knee, foot or sensor operated taps
• unobstructed space above it, not less than 600mm wide and extending not less than 750mm above the fixture
• the basin situated not more than 5m from any work station unobstructed by walls or fixtures
• each hand wash basin located between 800mm and 1000mm above the floor.

Instrument and equipment cleaning

Your business must be provided with at least one sink solely for washing and cleaning instruments and equipment. The sink must:

• have a bowl not less than 400mm long
• have reticulated hot and cold water
• be located between 800mm and 1000mm above the floor.

Floors

The finished floor surface must consist of a material that is free of cracks, irregularities, and imperfections and include one of the following:

• ceramic tiles, filled with heavy duty 100% epoxy, acid-resisting grouting in accordance with the manufacturer’s recommendations
• sealed cork tiles
• plastic tiles or sheeting
• polyurethane sealed timber
• epoxy resin sealed concrete
• carpet that can withstand fluids and can be easily cleaned.

The intersections between floors and walls must be provided with one of the following:

• coving at least 50mm high
• continuous skirting at least 50mm high consisting of timber, ceramic tiles or the like.

Wall and floor flexible Polyvinyl Chloride (PVC) sheeting must have heat welded seams.

Walls

The finished wall surfaces must consist of a material that is easily cleaned when painted or sealed and includes one of the following:

• sealed smooth concrete
• rendered hard plaster
• smooth concrete masonry
• smooth clay masonry
• timber boards
• timber sheeting
• washable vinyl wallpaper
• plasterboard.

Joints between wall and ceiling linings are to be flush with the surface.

Ceilings

The finished ceiling surfaces must consist of a material that is easily cleaned when painted or sealed and includes one of the following:

• sealed smooth concrete
• rendered hard plaster
• plasterboard
• timber
• timber boards or sheeting.

Joinery and other surfaces

All joinery and other finished surfaces, including benches, cupboards, shelves and work station areas on which instruments are placed, must consist of a material that can be easily cleaned, is smooth and free from cracks and crevices and includes one of the following:

• gloss paint or stain
• laminate
• glass
• stainless steel
• epoxy resin.

Water supply

Your business must have an adequate supply of hot and cold water which:

• is an adequate capacity for the activities on the premises
• is connected to a potable or approved water supply.

Lighting

Lighting must be sufficient to carry out your processes hygienically. Refer to Australian Standard 1680 (Interior Lighting set) for guidance.

General Waste

General waste must be placed in a container which is smooth and impervious and has a suitable lid.

Best practice

General waste must be disposed of in a smooth and impervious container that contains a disposable liner. This reduces the need to clean the container.

Key definitions

Floor plan examples

Refer to the example floor plan and the example sectional elevation plan for reference.
